Images Not showing Up in WebForms when placed in the Image Column for Note, Integer, Decimal, etc. Questions

Tyler_Depke · July 8, 2025, 4:22pm

1. What is the issue? Please be detailed.
Images placed in the image column are not showing up for questions when using WebForms but are showing up properly in Enketo. Also, an interesting note that the images show up centered in a note, integer, and decimal questions, but left-aligned in the select multiple question. Images are showing up in ODK Collect properly.

Please note that one of the image media is a GIF and based on these few tests, it doesn't seem like it is treated any differently than a normal JPG for example so YAY for GIFs working!
giphy

2. What steps can we take to reproduce this issue?
Upload the attached XLSForm with 2 media files to ODK Central and view in both Enketo and Webforms

3. What have you tried to fix the issue?
Just tried several different question types.

4. Upload any forms or screenshots you can share publicly below.
Images not Showing Up.zip (932.7 KB)

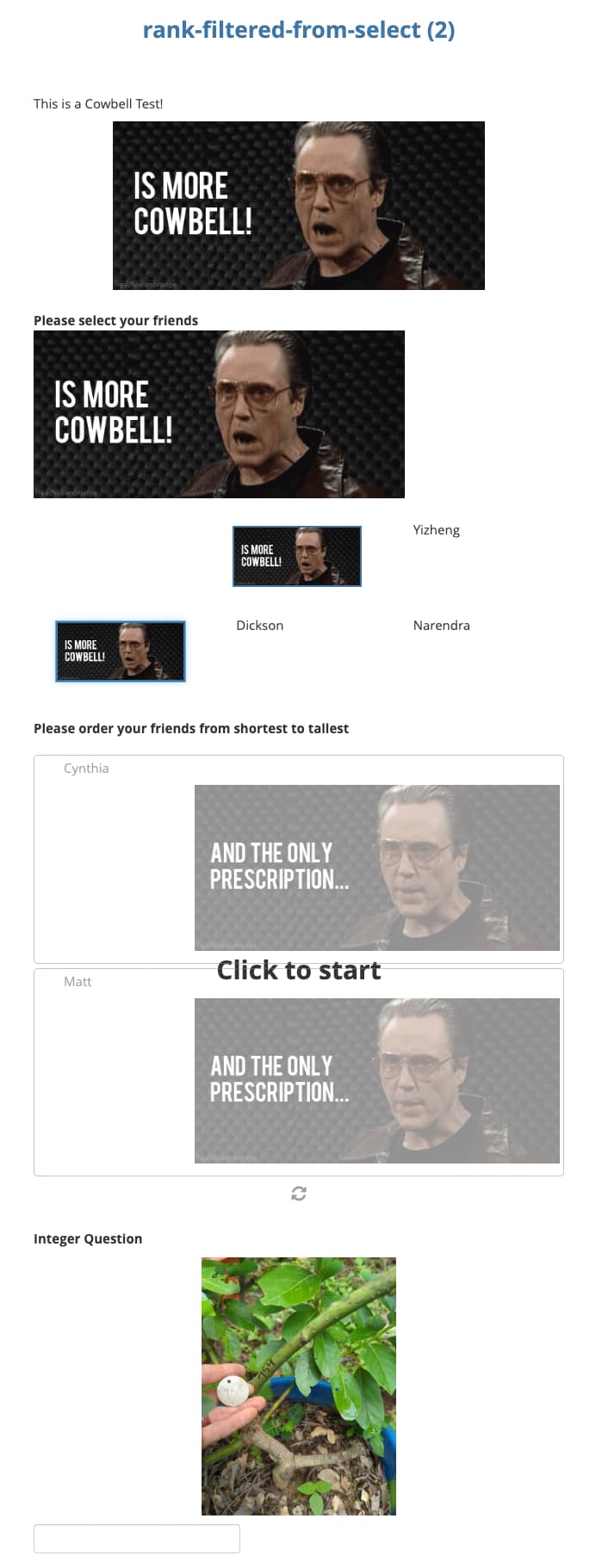

Enketo ScreenShot

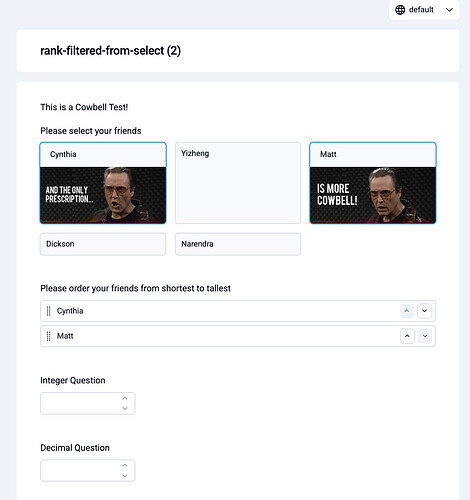

WebForms ScreenShot

JenniferQ · July 8, 2025, 9:11pm

Hi Tyler,

Thank you for trying out Web Forms and sending this form! We can use it for testing.

We have a ticket to track the implementation of image support on labels. The internal mechanism is coming together, and we’ll announce the feature once it’s ready.
