Recording shape files in ODK

Hi all

We are starting a new CMRV project in Acre, Brazil (Building on our CMRV
project in Guyana) and one of the main criteria now is to record is area
size. ie new forest farm plots etc. I remember a while ago there was a beta
version of ODK that I tested that incorporated the functionality of the
separate "distance and area" app, embedded into an ODK form. Just wondering
if this has progressed any further of if anyone else has a good solution
for capturing shape data (by walking with the phone around the area to
record).

We have used the "distance and area" app in Guyana for this task but found
it unreliable in saving data, and also then complicated in managing the
individual shape files it creates, having to bring then into a GIS package
to visualise. It is also not a good solution as meta data cant be
associated to the shape file to identify for example land use etc.

Is anyone else doing a similar thing and have any good solutions - would
love to hear.

Thanks

Jon

Jon Parsons
Digital Producer
Global Canopy Programme
j.parsons@globalcanopy.org | Skype: jonparsons

Jon,

There was talk about this sort of widget a few years ago
(https://groups.google.com/forum/#!msg/opendatakit/vIpPH5dcYcc/TFXTPqEe78IJ)
but the folks who were working on that version haven't touched the
code in a year and a half
(https://bitbucket.org/aostiles/odk-collect-afsis/commits/all). One
good first step is to email those developers and see what their status
is.

Yaw

··· -- Need ODK services? Go to http://nafundi.com for form design, data cleaning, custom reporting, and software development for ODK.

On Thu, Aug 22, 2013 at 4:50 AM, Jon Parsons j.parsons@globalcanopy.org wrote:

Hi all

We are starting a new CMRV project in Acre, Brazil (Building on our CMRV
project in Guyana) and one of the main criteria now is to record is area
size. ie new forest farm plots etc. I remember a while ago there was a beta
version of ODK that I tested that incorporated the functionality of the
separate "distance and area" app, embedded into an ODK form. Just wondering
if this has progressed any further of if anyone else has a good solution for
capturing shape data (by walking with the phone around the area to record).

We have used the "distance and area" app in Guyana for this task but found
it unreliable in saving data, and also then complicated in managing the
individual shape files it creates, having to bring then into a GIS package
to visualise. It is also not a good solution as meta data cant be associated
to the shape file to identify for example land use etc.

Is anyone else doing a similar thing and have any good solutions - would
love to hear.

Thanks

Jon

Jon Parsons
Digital Producer
Global Canopy Programme
j.parsons@globalcanopy.org | Skype: jonparsons

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

Hi all,

Interesting conversation here but noticed that much of the dialogue on capturing shape data, geo-tracing, etc has gone dormant for awhile.

I'm currently working on a project that would benefit from tracing field perimeters, calculating surface area, etc. and I am curious if a widget or the necessary code in xlsform has been completed.

Fyi...don't have much experience with programming. Thanks!

Hi Jon,

If you use the Smap server it will interpret a repeating group whose name
starts with geopolygon as collecting points for a polygon. The same goes
for repeating groups whose name starts with geolinestring, these are
interpreted as linestrings. These are stored as geometries in a Postgis
database so it would be trivia to extract shape files.

If you are interested there is more about the Smap server in the
organisational blog http://blog.smap.com.au/ and you can download the
server from https://code.google.com/p/smap-suite/

regards

Neil

··· On Thu, Aug 22, 2013 at 11:50 PM, Yaw Anokwa wrote:

Jon,

There was talk about this sort of widget a few years ago
(
https://groups.google.com/forum/#!msg/opendatakit/vIpPH5dcYcc/TFXTPqEe78IJ
)
but the folks who were working on that version haven't touched the
code in a year and a half
(https://bitbucket.org/aostiles/odk-collect-afsis/commits/all). One
good first step is to email those developers and see what their status
is.

Yaw

Need ODK services? Go to http://nafundi.com for form design, data
cleaning, custom reporting, and software development for ODK.

On Thu, Aug 22, 2013 at 4:50 AM, Jon Parsons j.parsons@globalcanopy.org wrote:

Hi all

We are starting a new CMRV project in Acre, Brazil (Building on our CMRV
project in Guyana) and one of the main criteria now is to record is area
size. ie new forest farm plots etc. I remember a while ago there was a
beta
version of ODK that I tested that incorporated the functionality of the
separate "distance and area" app, embedded into an ODK form. Just
wondering
if this has progressed any further of if anyone else has a good solution
for
capturing shape data (by walking with the phone around the area to
record).

We have used the "distance and area" app in Guyana for this task but
found
it unreliable in saving data, and also then complicated in managing the
individual shape files it creates, having to bring then into a GIS
package
to visualise. It is also not a good solution as meta data cant be
associated
to the shape file to identify for example land use etc.

Is anyone else doing a similar thing and have any good solutions - would
love to hear.

Thanks

Jon

Jon Parsons
Digital Producer
Global Canopy Programme
j.parsons@globalcanopy.org | Skype: jonparsons

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

--

Smap Consulting http://smap.com.au/| Mobile Data Collection Solutions
Application Developer - neilpenman@gmail.com minqiang.huang@gmail.com
Twitter: @dgmsot
Skype: ianaf4you
Phone: +61 402 975 959
Blog: http://blog.smap.com.au http://smap.com.au/blog

··· On Fri, Jun 27, 2014 at 1:46 PM, wrote:

Hi all,

Interesting conversation here but noticed that much of the dialogue on
capturing shape data, geo-tracing, etc has gone dormant for awhile.

I'm currently working on a project that would benefit from tracing field
perimeters, calculating surface area, etc. and I am curious if a widget or
the necessary code in xlsform has been completed.

Fyi...don't have much experience with programming. Thanks!

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to a topic in the
Google Groups "ODK Community" group.
To unsubscribe from this topic, visit
https://groups.google.com/d/topic/opendatakit/RqrqBJqSNLY/unsubscribe.
To unsubscribe from this group and all its topics, send an email to
opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

--
Isaac Gardner
Field Manager - Mango | TechnoServe Haiti
igardner@tns.org | +509 31548879

In SurveyCTO, we have functions to calculate the area enclosed by a series
of repeated geopoints or to calculate the distance between two geopoints.
We have not yet implemented the new data types, however, as it seemed easy
enough to take any two fields or any repeated fields as inputs, without the
need for new types.

There is a recent discussion on adding new data types to ODK, spearheaded
by Enketo's Martijn. You can find it here:

https://groups.google.com/forum/#!msg/opendatakit-developers/AfVgKcpE6Jk/HLNo-7hBgjEJ

Best,

Chris

··· On Fri, Jun 27, 2014 at 1:46 PM, wrote:

Hi all,

Interesting conversation here but noticed that much of the dialogue on
capturing shape data, geo-tracing, etc has gone dormant for awhile.

I'm currently working on a project that would benefit from tracing field
perimeters, calculating surface area, etc. and I am curious if a widget or
the necessary code in xlsform has been completed.

Fyi...don't have much experience with programming. Thanks!

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

Interesting, looks like its simply an ODK form up front and then the smap
system does the rest

but can I still use my own ODK engine to collect data in fusion, then
export it and import it into smap for the points to be made into strigs -
then i presume can be exported out as a normal GIS file format

the 40+ crew in Guyana, and now a further 40 in Acre, are all trained in
ODK and fusion etc, together with maps engine for visualisation, and we
also have some skills in ARC info - so keen not to introduce a whole new
system as will just add to the already confusing array of systems and
skills needed.

But interested to hear more.

Thanks

Jon

··· On Friday, August 23, 2013 2:11:59 PM UTC+1, Neil Penman wrote: > > Hi Jon, > > If you use the Smap server it will interpret a repeating group whose name > starts with geopolygon as collecting points for a polygon. The same goes > for repeating groups whose name starts with geolinestring, these are > interpreted as linestrings. These are stored as geometries in a Postgis > database so it would be trivia to extract shape files. > > If you are interested there is more about the Smap server in the > organisational blog http://blog.smap.com.au/ and you can download the > server from https://code.google.com/p/smap-suite/ > > regards > > Neil > > > On Thu, Aug 22, 2013 at 11:50 PM, Yaw Anokwa <yan...@nafundi.com wrote: > >> Jon, >> >> There was talk about this sort of widget a few years ago >> ( >> https://groups.google.com/forum/#!msg/opendatakit/vIpPH5dcYcc/TFXTPqEe78IJ >> ) >> but the folks who were working on that version haven't touched the >> code in a year and a half >> (https://bitbucket.org/aostiles/odk-collect-afsis/commits/all). One >> good first step is to email those developers and see what their status >> is. >> >> Yaw >> -- >> Need ODK services? Go to http://nafundi.com for form design, data >> cleaning, custom reporting, and software development for ODK. >> >> On Thu, Aug 22, 2013 at 4:50 AM, Jon Parsons <j.pa...@globalcanopy.org> wrote: >> > Hi all >> > >> > We are starting a new CMRV project in Acre, Brazil (Building on our CMRV >> > project in Guyana) and one of the main criteria now is to record is area >> > size. ie new forest farm plots etc. I remember a while ago there was a >> beta >> > version of ODK that I tested that incorporated the functionality of the >> > separate "distance and area" app, embedded into an ODK form. Just >> wondering >> > if this has progressed any further of if anyone else has a good >> solution for >> > capturing shape data (by walking with the phone around the area to >> record). >> > >> > We have used the "distance and area" app in Guyana for this task but >> found >> > it unreliable in saving data, and also then complicated in managing the >> > individual shape files it creates, having to bring then into a GIS >> package >> > to visualise. It is also not a good solution as meta data cant be >> associated >> > to the shape file to identify for example land use etc. >> > >> > Is anyone else doing a similar thing and have any good solutions - would >> > love to hear. >> > >> > Thanks >> > >> > Jon >> > >> > >> > Jon Parsons >> > Digital Producer >> > Global Canopy Programme >> > j.pa...@globalcanopy.org | Skype: jonparsons >> > >> > >> > -- >> > -- >> > Post: opend...@googlegroups.com >> > Unsubscribe: opendatakit...@googlegroups.com >> > Options: http://groups.google.com/group/opendatakit?hl=en >> > >> > --- >> > You received this message because you are subscribed to the Google >> Groups >> > "ODK Community" group. >> > To unsubscribe from this group and stop receiving emails from it, send >> an >> > email to opendatakit...@googlegroups.com . >> > For more options, visit https://groups.google.com/groups/opt_out. >> >> -- >> -- >> Post: opend...@googlegroups.com >> Unsubscribe: opendatakit...@googlegroups.com >> Options: http://groups.google.com/group/opendatakit?hl=en >> >> --- >> You received this message because you are subscribed to the Google Groups >> "ODK Community" group. >> To unsubscribe from this group and stop receiving emails from it, send an >> email to opendatakit...@googlegroups.com . >> For more options, visit https://groups.google.com/groups/opt_out. >> > > > > -- > > Smap Consulting | Mobile Data Collection Solutions > Application Developer - neilp...@gmail.com > Twitter: @dgmsot > Skype: ianaf4you > Phone: +61 402 975 959 > Blog: http://blog.smap.com.au >

It does sound like changing server will impact your project.

Yes it is just a standard ODK form and you can use odkCollect in the field.

Putting the data in aggregate then fusion first followed by sending it to
the Smap server does sound complicated. As long as you can submit the forms
to both systems I guess it should work.

Smap doesn't' have a direct link to fusion but you can export as XLS and
then import to fusion. On export you can specify which forms to include so
you can exclude the repeats that hold the point data.

Arc Info should be able to connect directly to postgis.

There may be a way of getting shape files from aggregate / fusion using the
same approach as Smap. Ie just a repeating group of locations.

Regards

Neil

··· On 23/08/2013 11:48 PM, "Jon Parsons" wrote:

Interesting, looks like its simply an ODK form up front and then the smap
system does the rest

but can I still use my own ODK engine to collect data in fusion, then
export it and import it into smap for the points to be made into strigs -
then i presume can be exported out as a normal GIS file format

the 40+ crew in Guyana, and now a further 40 in Acre, are all trained in
ODK and fusion etc, together with maps engine for visualisation, and we
also have some skills in ARC info - so keen not to introduce a whole new
system as will just add to the already confusing array of systems and
skills needed.

But interested to hear more.

Thanks

Jon

On Friday, August 23, 2013 2:11:59 PM UTC+1, Neil Penman wrote:

Hi Jon,

If you use the Smap server it will interpret a repeating group whose name
starts with geopolygon as collecting points for a polygon. The same goes
for repeating groups whose name starts with geolinestring, these are
interpreted as linestrings. These are stored as geometries in a Postgis
database so it would be trivia to extract shape files.

If you are interested there is more about the Smap server in the
organisational blog http://blog.smap.com.au/ and you can download the
server from https://code.google.com/**p/smap-suite/https://code.google.com/p/smap-suite/

regards

Neil

On Thu, Aug 22, 2013 at 11:50 PM, Yaw Anokwa yan...@nafundi.com wrote:

Jon,

There was talk about this sort of widget a few years ago
(https://groups.google.com/forum/#!msg/opendatakit/
vIpPH5dcYcc/TFXTPqEe78IJhttps://groups.google.com/forum/#!msg/opendatakit/vIpPH5dcYcc/TFXTPqEe78IJ
)
but the folks who were working on that version haven't touched the
code in a year and a half
(https://bitbucket.org/**aostiles/odk-collect-afsis/**commits/allhttps://bitbucket.org/aostiles/odk-collect-afsis/commits/all).
One
good first step is to email those developers and see what their status
is.

Yaw

Need ODK services? Go to http://nafundi.com for form design, data
cleaning, custom reporting, and software development for ODK.

On Thu, Aug 22, 2013 at 4:50 AM, Jon Parsons j.pa...@globalcanopy.org wrote:

Hi all

We are starting a new CMRV project in Acre, Brazil (Building on our
CMRV
project in Guyana) and one of the main criteria now is to record is
area
size. ie new forest farm plots etc. I remember a while ago there was a
beta
version of ODK that I tested that incorporated the functionality of the
separate "distance and area" app, embedded into an ODK form. Just
wondering
if this has progressed any further of if anyone else has a good
solution for
capturing shape data (by walking with the phone around the area to
record).

We have used the "distance and area" app in Guyana for this task but
found
it unreliable in saving data, and also then complicated in managing the
individual shape files it creates, having to bring then into a GIS
package
to visualise. It is also not a good solution as meta data cant be
associated
to the shape file to identify for example land use etc.

Is anyone else doing a similar thing and have any good solutions -
would
love to hear.

Thanks

Jon

Jon Parsons
Digital Producer
Global Canopy Programme
j.pa...@globalcanopy.org | Skype: jonparsons

--

Post: opend...@googlegroups.com
Unsubscribe: opendatakit...@**googlegroups.com
Options: http://groups.google.com/**group/opendatakit?hl=enhttp://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google
Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send
an
email to opendatakit...@**googlegroups.com.
For more options, visit https://groups.google.com/**groups/opt_outhttps://groups.google.com/groups/opt_out
.

--

Post: opend...@googlegroups.com
Unsubscribe: opendatakit...@**googlegroups.com
Options: http://groups.google.com/**group/opendatakit?hl=enhttp://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google
Groups "ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send
an email to opendatakit...@**googlegroups.com.
For more options, visit https://groups.google.com/**groups/opt_outhttps://groups.google.com/groups/opt_out
.

--

Smap Consulting http://smap.com.au/| Mobile Data Collection Solutions
Application Developer - neilp...@gmail.com
Twitter: @dgmsot
Skype: ianaf4you
Phone: +61 402 975 959
Blog: http://blog.smap.com.au http://smap.com.au/blog

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

Hi,

Smap Server stores repeated geopoints as a polygon or linestring in postgis
if the name of the repeating group starts with geopolygon or geolinestring.
Smap also supports the geoshape and geotrace datatypes and again stores
those as geometries in Postgis.

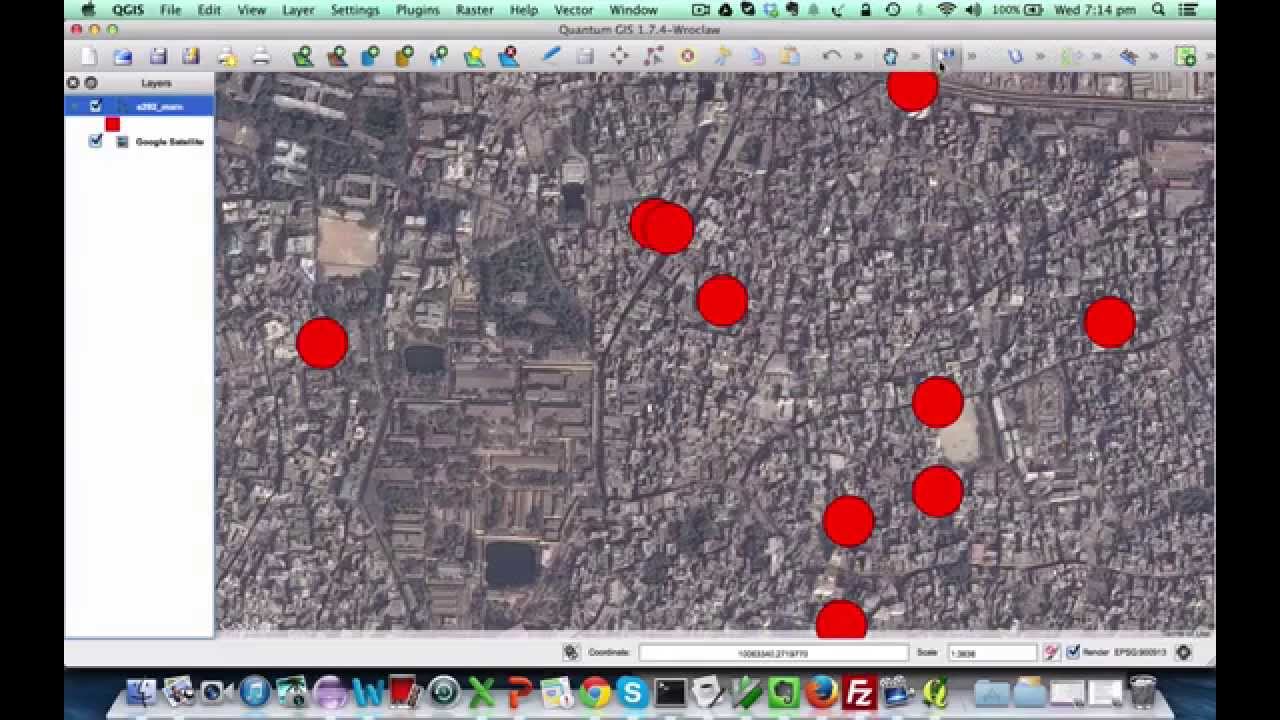

You can exports the results as shape files, this video shows how to do this
although the data was actually points in the video.

You can download Smap server from http://www.smap.com.au/downloads.shtml

regards

Neil

··· On Sat, Jun 28, 2014 at 6:29 AM, Christopher Robert wrote:

In SurveyCTO, we have functions to calculate the area enclosed by a series
of repeated geopoints or to calculate the distance between two geopoints.
We have not yet implemented the new data types, however, as it seemed easy
enough to take any two fields or any repeated fields as inputs, without the
need for new types.

There is a recent discussion on adding new data types to ODK, spearheaded
by Enketo's Martijn. You can find it here:

https://groups.google.com/forum/#!msg/opendatakit-developers/AfVgKcpE6Jk/HLNo-7hBgjEJ

Best,

Chris

On Fri, Jun 27, 2014 at 1:46 PM, igardner@tns.org wrote:

Hi all,

Interesting conversation here but noticed that much of the dialogue on
capturing shape data, geo-tracing, etc has gone dormant for awhile.

I'm currently working on a project that would benefit from tracing field
perimeters, calculating surface area, etc. and I am curious if a widget or
the necessary code in xlsform has been completed.

Fyi...don't have much experience with programming. Thanks!

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

--

Post: opendatakit@googlegroups.com
Unsubscribe: opendatakit+unsubscribe@googlegroups.com
Options: http://groups.google.com/group/opendatakit?hl=en


You received this message because you are subscribed to the Google Groups
"ODK Community" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to opendatakit+unsubscribe@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

--

Smap Consulting http://smap.com.au/| Mobile Data Collection Solutions
Application Developer - neilpenman@gmail.com minqiang.huang@gmail.com
Twitter: @dgmsot
Skype: ianaf4you
Phone: +61 402 975 959
Blog: http://blog.smap.com.au http://smap.com.au/blog
